SM-AIT - Intake Air Temp Sensor Module
Alternative Views:
Download
SM-AIT
User Guide
SM-AIT Sensor Module for measuring Air Intake Temperature. Includes a K-Type thermocouple, aluminum control box, wires/connectors for interfacing with DM-6, DM-100/200 or 3rd party ECU's and data loggers.
Price: $129.99
Sale Price: $
99.99
Savings: $30.00
Product Code:
897346002214
Qty:
Description
Technical Specs
Extended Information
The SM-AIT accurately measures the air intake temperature of any intake manifold. This is ideal for intercooler, or aftercooler applications. Any K-Type thermo couple is compatible. Up to 32 Sensor Modules can be daisy chained together in the PLX iMFD system and can be connected to any PLX Multi Gauge through the digital serial output port. The Air Intake Temperature Sensor Module can also be used as a stand alone unit capable of interfacing with 3rd party hardware where both the digital output and analog output are available simultaneously. The SM-AIT has a temperature measurement range of 32 - 631 degrees Fahrenheit or 0 - 333 degrees Celsius.

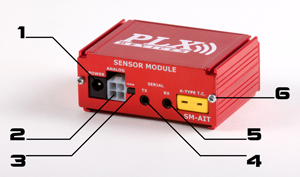

1) 12V power input
2) 4 prong analog clip
3) Termination jumper
4) Serial TX Plug (Out)
5) Serial RX Plug (In)
6) Sensor Input Clip

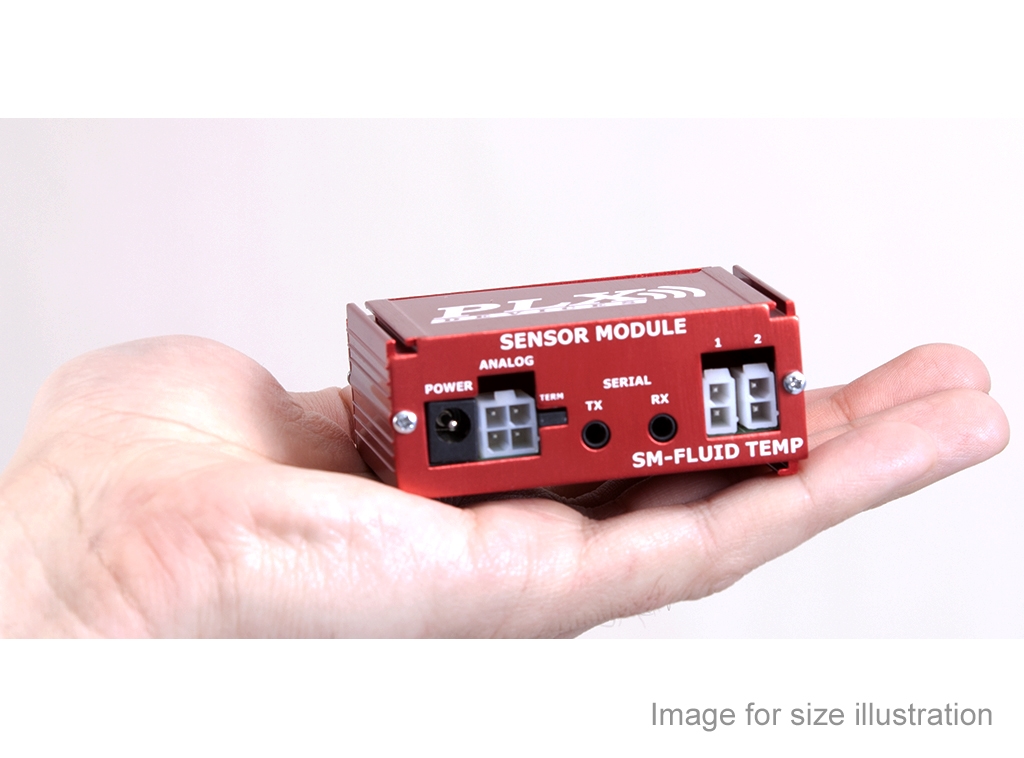

Physical Dimensions:
2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
Technology:
T.C. Amplifier with Cold Junction Compensation
Accuracy:
~0.5 Degrees C (~1 Degrees F)
Measurement Range:
0-333 Degrees C (32-631 Degrees F)
Analog Outputs:

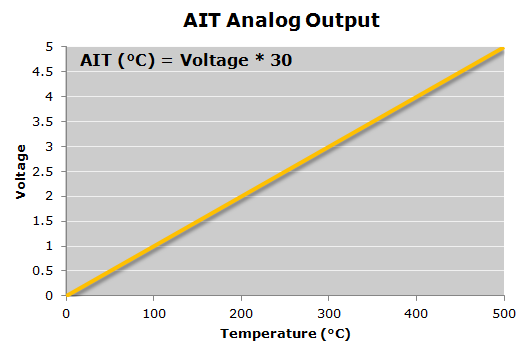

Linear 0-5V (Driving Current 20mA) *Output is capped at 3.3 Volts
Operating Voltage:
8V-18
Power Consumption:
0.3 Watts
Operating Temperature:
0 - 85 Degrees Celsius
Sensor:
One K-Type Thermocouple
Enclosure:
Extruded Aluminum
iMFD Sensor Table:
Sensor
Address
Units
Min
Max
Wideband O2
0
0 - Lambda
0.68
1.36
1 - Gasoline (14.7)
10
20
2 - Diesel (14.6)
9.93
19.86
3 - Methanol (6.4)
4.35
8.7
4 - Ethanol (9.0)
6.12
12.24
5 - LPG (15.5)
10.54
21.08
6 - CNG (17.2)
11.7
23.39
7 - E85 (9.76)
6.64
13.27
Exhaust Gas Temp
1
0 - Celsius
0
1023
1 - Fahrenheit
32
1873
Fluid Temp
2
0 - Celsius Water
0
150
1 - Fahrenheit Water
32
302
2 - Celsius Oil
0
150
3 - Fahrenheit Oil
32
302
Vacuum
3
0 - Vac in/Hg
29.93
0
1 - Vac mm/Hg
760
0
Boost
4
2 - Boost 0-30 PSI
0
30
3 - Boost 0-2 kg/cm
2
0
2.07
4 - Boost 0-15 PSI
0
15
5 - Boost 0-1 kg/cm
2
0
1.12
Air Intake Temp
5
0 - Celsius
0
150
1 - Fahrenheit
32
302
RPM
6
0 - 8k
0
8000
1 - 12k
0
12000
2 - 20k
0
20000
Speed
7
0 - MPH
0
160
1 - km/H
0
258
Throttle Position
8
0 - Percent
0
100
Engine Load
9
0 - Percent
0
100
Fluid Pressure
10
0 - PSI Fuel
0
120
1 - kg/cm
2
Fuel
0
8.44
2 - Bar Fuel
0
8.27
3 - PSI Oil
0
120
4 - kg/cm
2
Oil
0
8.44
5 - Bar Oil
0
8.27
Sensor
Address
Units
Min
Max
Timing
11
0 - Degree
-64
64
Manifold Absolute
12
0 - kPa
0
255
Pressure (MAP)
1 - inHg
0
75.3
Mass Air Flow (MAF)
13
0 - g/s
0
655.35
1 - lb/min
0
86.69
Short Term Fuel Trim
14
0 - Percent
-100
100
Long Term Fuel Trim
15
0 - Percent
-100
100
Narrowband O2
16
0 - Percent
0
100
1 - Volts
0
1.275
Fuel Level
17
0 - Percent
0
100
Volt Meter
18
0 - Volts
0
20
Knock
19
0 - Volts
0
5
Duty Cycle
20
0 - Positive
0
100
1 - Negative
0
100
Fuel Efficiency
21
0 - MPG
0
100
1 - KM/L
0.43
42.51
2 - L=100KM
Analog Voltage
22
0 - Volts
0
5
Speed (Hertz)
23
0 - Hz
0
10,230
Wideband AFR Status
24
0 - Heating, Ready
0
1
Wideband AFR Health
25
0 - Percent
0
101
Wideband AFR Reaction
26
0 - ms
0
999
Features
1/8 NPT Sensor
1 analog output
1 digital input, 1 digital output
Digital Precision
Included Items:
SM-AIT main unit

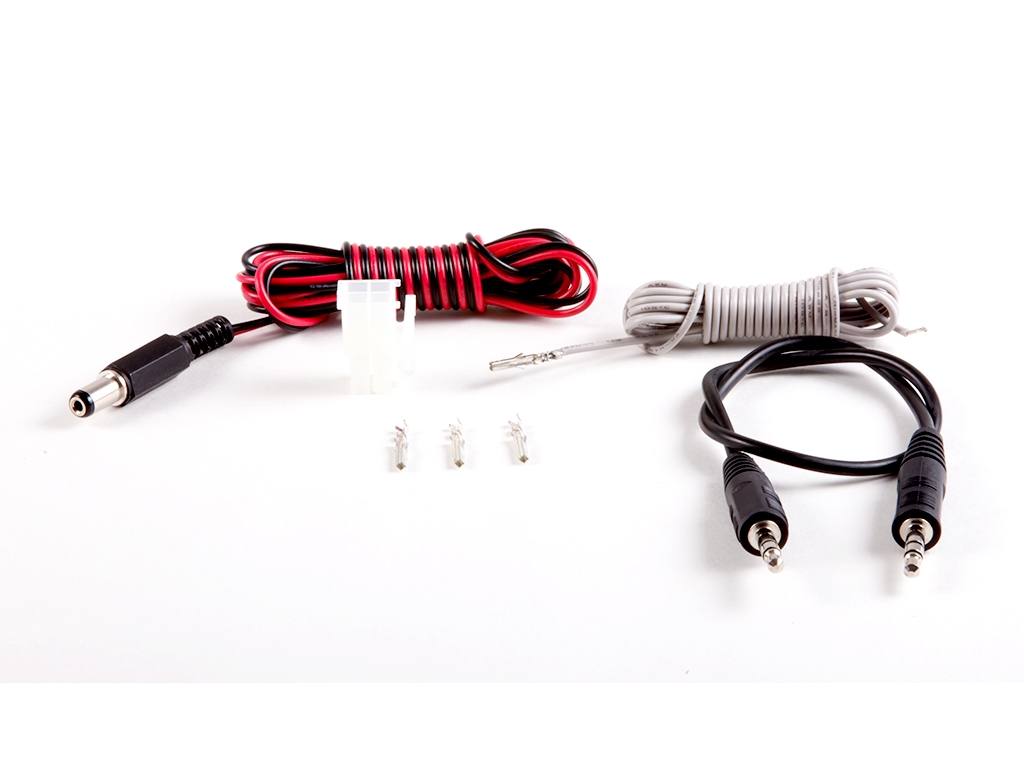

4ft power wire with 2.1mm connector
4ft Analog wires and connector with 4 terminals
1ft Serial Cable
Termination jumper

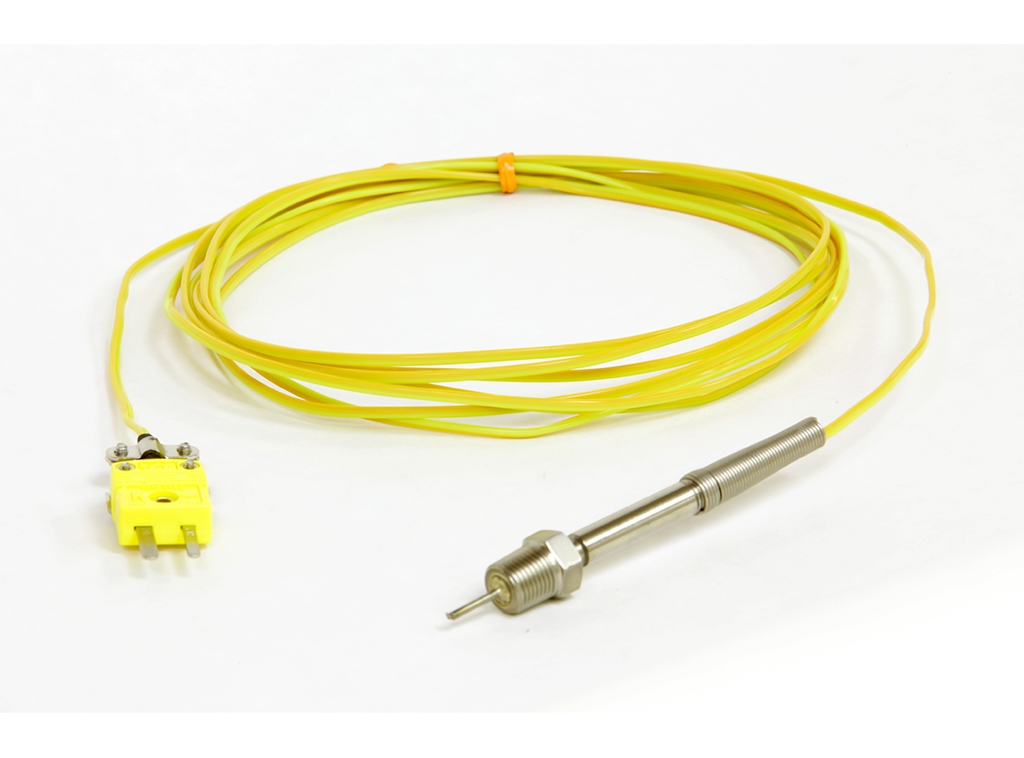

One K-Type Thermocouple Temperature Sender
User Manual
