The SM-FluidPressure accurately measures the the pressure of oil, water, and other fluids. This is ideal for oil pressure monitoring. Up to 32 Sensor Modules can be daisy chained together in the iMFD system and can be connected to any PLX Multi Gauge through the digital serial output port. The Oil Pressure Sensor Module can also be used as a stand alone unit capable of interfacing with 3rd party hardware where both the digital output and the analog output are available simultaneously. The included sensor is designed for oil pressure sensing ONLY. DO NOT use this sensor with fuel, as the sensor will damage due to corrosion over time. The SM-FP has a measurement range of 0 - 150 PSI or 0 - 10.5 kg/cm^2.

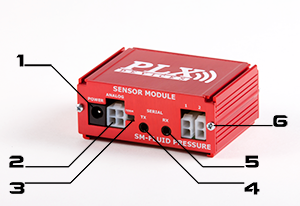

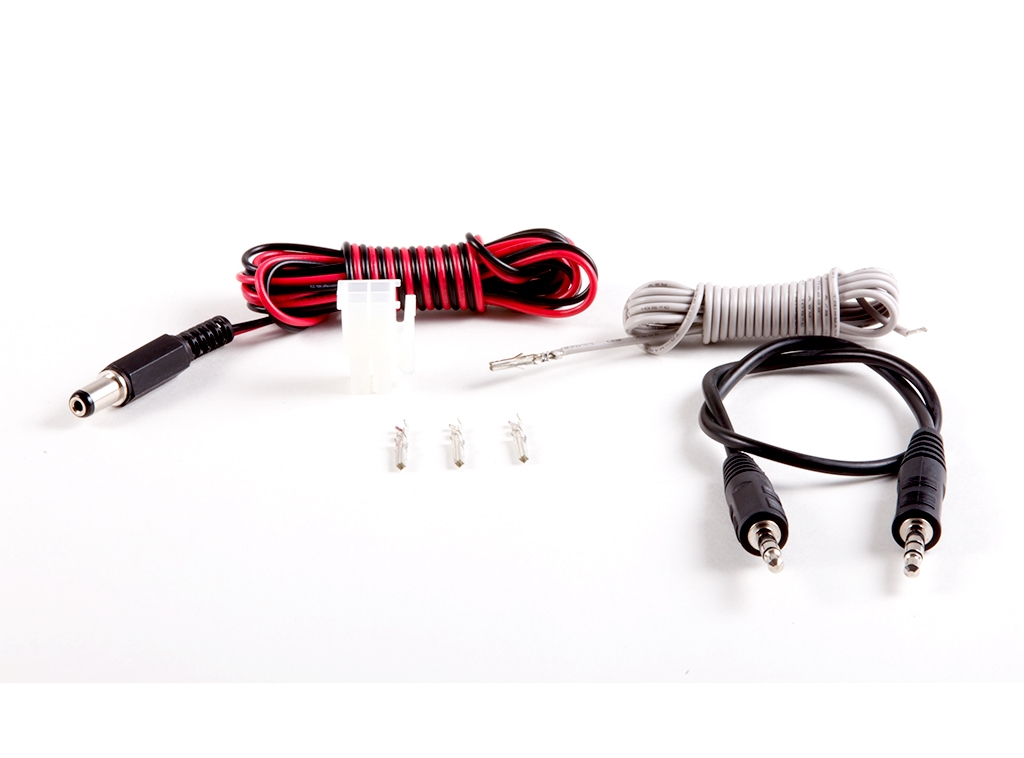

1) 12V power input
2) 4 prong analog clip
3) Termination jumper
4) Serial TX Plug (Out)
5) Serial RX Plug (In)
6) Sensor Input Clip

Physical Dimensions: 2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
Technology: 10 Bit ADC Voltage Divider
Accuracy: ~1 PSI
Measurement Range: 0 - 150 PSI
Analog Outputs: Linear 0-5V (Driving Current 20mA)
Operating Voltage: 8V-18
Power Consumption: 0.3 Watts
Operating Temperature: 0 - 85 Deg Celsius

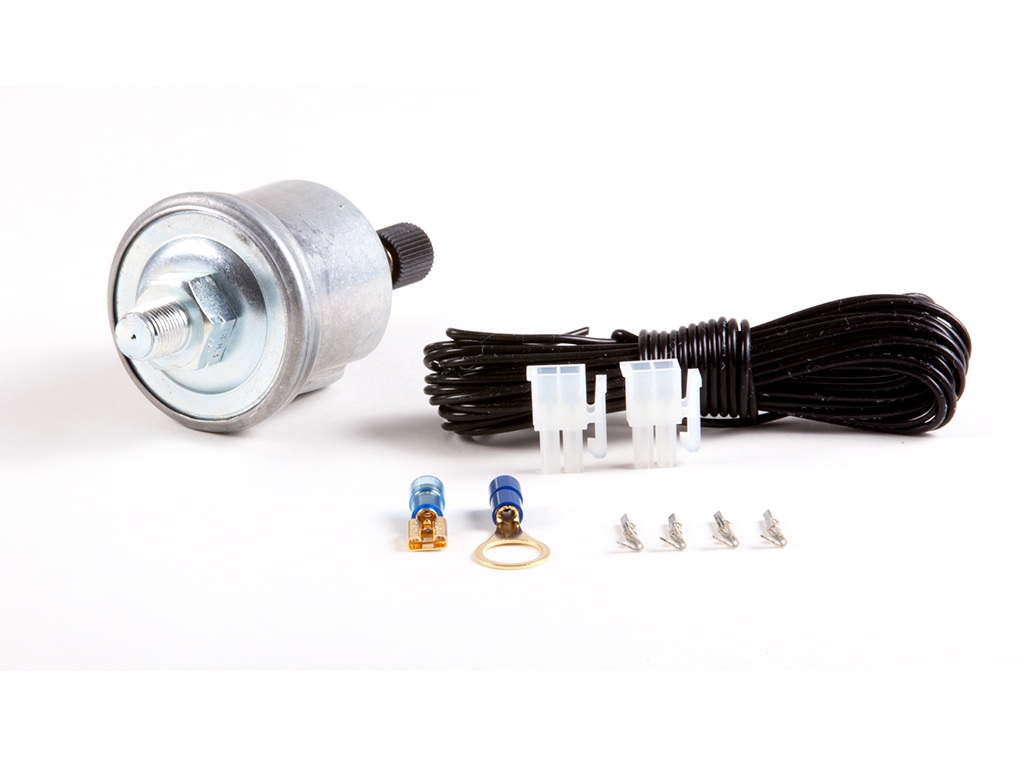

Sensor: Two Resistive Type Pressure Senders *Only one sensor is included in kit. A second sensor can be purchased separately.
Enclosure: Extruded Aluminum

iMFD Sensor Table:

Sensor Address Units Min Max Wideband O2 0 0 - Lambda 0.68 1.36 1 - Gasoline (14.7) 10 20 2 - Diesel (14.6) 9.93 19.86 3 - Methanol (6.4) 4.35 8.7 4 - Ethanol (9.0) 6.12 12.24 5 - LPG (15.5) 10.54 21.08 6 - CNG (17.2) 11.7 23.39 7 - E85 (9.76) 6.64 13.27 Exhaust Gas Temp 1 0 - Celsius 0 1023 1 - Fahrenheit 32 1873 Fluid Temp 2 0 - Celsius Water 0 150 1 - Fahrenheit Water 32 302 2 - Celsius Oil 0 150 3 - Fahrenheit Oil 32 302 Vacuum 3 0 - Vac in/Hg 29.93 0 1 - Vac mm/Hg 760 0 Boost 4 2 - Boost 0-30 PSI 0 30 3 - Boost 0-2 kg/cm 2 0 2.07 4 - Boost 0-15 PSI 0 15 5 - Boost 0-1 kg/cm 2 0 1.12 Air Intake Temp 5 0 - Celsius 0 150 1 - Fahrenheit 32 302 RPM 6 0 - 8k 0 8000 1 - 12k 0 12000 2 - 20k 0 20000 Speed 7 0 - MPH 0 160 1 - km/H 0 258 Throttle Position 8 0 - Percent 0 100 Engine Load 9 0 - Percent 0 100 Fluid Pressure 10 0 - PSI Fuel 0 120 1 - kg/cm 2 Fuel 0 8.44 2 - Bar Fuel 0 8.27 3 - PSI Oil 0 120 4 - kg/cm 2 Oil 0 8.44 5 - Bar Oil 0 8.27

Sensor Address Units Min Max Timing 11 0 - Degree -64 64 Manifold Absolute 12 0 - kPa 0 255 Pressure (MAP) 1 - inHg 0 75.3 Mass Air Flow (MAF) 13 0 - g/s 0 655.35 1 - lb/min 0 86.69 Short Term Fuel Trim 14 0 - Percent -100 100 Long Term Fuel Trim 15 0 - Percent -100 100 Narrowband O2 16 0 - Percent 0 100 1 - Volts 0 1.275 Fuel Level 17 0 - Percent 0 100 Volt Meter 18 0 - Volts 0 20 Knock 19 0 - Volts 0 5 Duty Cycle 20 0 - Positive 0 100 1 - Negative 0 100 Fuel Efficiency 21 0 - MPG 0 100 1 - KM/L 0.43 42.51 2 - L=100KM Analog Voltage 22 0 - Volts 0 5 Speed (Hertz) 23 0 - Hz 0 10,230 Wideband AFR Status 24 0 - Heating, Ready 0 1 Wideband AFR Health 25 0 - Percent 0 101 Wideband AFR Reaction 26 0 - ms 0 999
