SM-FluidTemp - Fluid Temp Sensor Module
Alternative Views:
Download
SM-FT
User Guide
SM-FluidTemp Sensor Module for measuring Water/Oil Temperature. Includes a VDO resistive type sensor, aluminum control box, wires/connectors for interfacing with DM-6, DM-100/200 or 3rd party ECU's and data loggers.
Price: $99.99
Sale Price: $
84.99
Savings: $15.00
Product Code:
897346002207
Out of Stock
Description
Technical Specs
Extended Information
The SM-FluidTemp accurately measures the the temperature of any liquid. It uses a resistive type VDO sender. This is ideal for coolant temp, transmission temp, oil temp and any other water temperature monitoring. Up to 32 Sensor Modules can be daisy chained together in the PLX iMFD system and can be connected to any PLX Multi Gauge through the digital serial output port and can be connected to any PLX Multi Gauge through the digital serial output port such as the DM-6 or DM-100. The Fluid Temperature Sensor Module can also be used as a stand alone unit capable of interfacing with 3rd party hardware where both the digital output and analog output are available simultaneously. The SM-FT has a measurement range of 32 - 302 degrees Fahrenheit or 0 - 150 degrees Celsius.
1) 12V power input
2) 4 prong analog clip
3) Termination jumper
4) Serial TX Plug (Out)
5) Serial RX Plug (In)
6) Sensor Input Clip
Physical Dimensions:
2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
Technology:
10 Bit ADC Voltage Divider
Accuracy:
~0.5 Degrees C (~1 Degrees F)
Measurement Range:
0-150 Degrees C (32-302 Degrees F)
Analog Outputs:

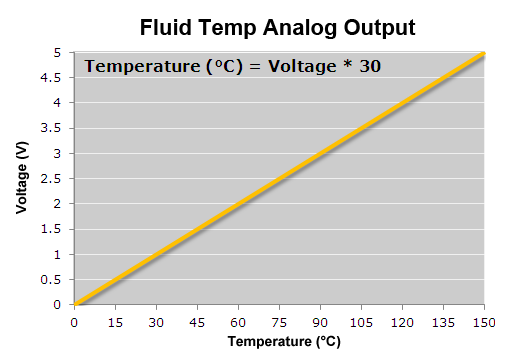

Linear 0-5V (Driving Current 20mA)
Operating Voltage:
8V-18
Power Consumption:
0.3 Watts
Operating Temperature:
0 - 85 Degrees Celsius
Sensor:
Two Resistive Type Temperature Senders *Only one sensor is included in kit. A second sensor can be purchased separately.
Enclosure:
Extruded Aluminum
iMFD Sensor Table:
Sensor
Address
Units
Min
Max
Wideband O2
0
0 - Lambda
0.68
1.36
1 - Gasoline (14.7)
10
20
2 - Diesel (14.6)
9.93
19.86
3 - Methanol (6.4)
4.35
8.7
4 - Ethanol (9.0)
6.12
12.24
5 - LPG (15.5)
10.54
21.08
6 - CNG (17.2)
11.7
23.39
7 - E85 (9.76)
6.64
13.27
Exhaust Gas Temp
1
0 - Celsius
0
1023
1 - Fahrenheit
32
1873
Fluid Temp
2
0 - Celsius Water
0
150
1 - Fahrenheit Water
32
302
2 - Celsius Oil
0
150
3 - Fahrenheit Oil
32
302
Vacuum
3
0 - Vac in/Hg
29.93
0
1 - Vac mm/Hg
760
0
Boost
4
2 - Boost 0-30 PSI
0
30
3 - Boost 0-2 kg/cm
2
0
2.07
4 - Boost 0-15 PSI
0
15
5 - Boost 0-1 kg/cm
2
0
1.12
Air Intake Temp
5
0 - Celsius
0
150
1 - Fahrenheit
32
302
RPM
6
0 - 8k
0
8000
1 - 12k
0
12000
2 - 20k
0
20000
Speed
7
0 - MPH
0
160
1 - km/H
0
258
Throttle Position
8
0 - Percent
0
100
Engine Load
9
0 - Percent
0
100
Fluid Pressure
10
0 - PSI Fuel
0
120
1 - kg/cm
2
Fuel
0
8.44
2 - Bar Fuel
0
8.27
3 - PSI Oil
0
120
4 - kg/cm
2
Oil
0
8.44
5 - Bar Oil
0
8.27
Sensor
Address
Units
Min
Max
Timing
11
0 - Degree
-64
64
Manifold Absolute
12
0 - kPa
0
255
Pressure (MAP)
1 - inHg
0
75.3
Mass Air Flow (MAF)
13
0 - g/s
0
655.35
1 - lb/min
0
86.69
Short Term Fuel Trim
14
0 - Percent
-100
100
Long Term Fuel Trim
15
0 - Percent
-100
100
Narrowband O2
16
0 - Percent
0
100
1 - Volts
0
1.275
Fuel Level
17
0 - Percent
0
100
Volt Meter
18
0 - Volts
0
20
Knock
19
0 - Volts
0
5
Duty Cycle
20
0 - Positive
0
100
1 - Negative
0
100
Fuel Efficiency
21
0 - MPG
0
100
1 - KM/L
0.43
42.51
2 - L=100KM
Analog Voltage
22
0 - Volts
0
5
Speed (Hertz)
23
0 - Hz
0
10,230
Wideband AFR Status
24
0 - Heating, Ready
0
1
Wideband AFR Health
25
0 - Percent
0
101
Wideband AFR Reaction
26
0 - ms
0
999
Features
1 analog output
1 digital input, 1 digital output
Gold plated contacts
Digital precision
Included Items:

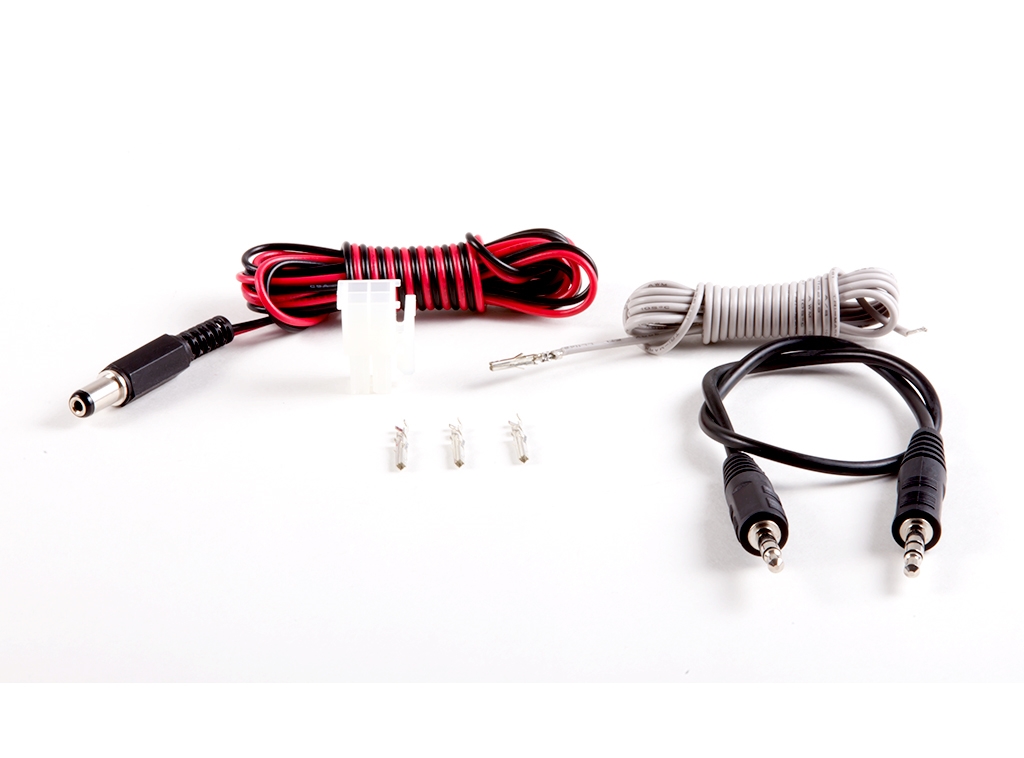

SM-FT main unit
4ft power wire with 2.1mm connector
4ft Analog wires and connector with 4 terminals
1ft Serial Cable
Termination jumper
One Resistive Type Fluid Temperature Sender
*
(Additional sensor sold separately)
User Manual
