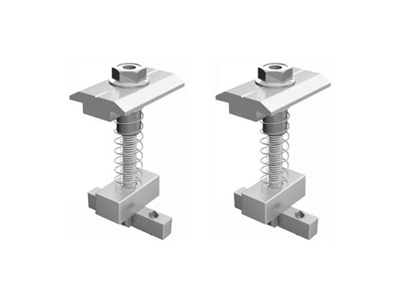

Legion Solar Mid Clamp Kit (Set of 2qty)
Legion Solar Mid Clamp Kit (Set of 2qty)

Legion Solar Mid Clamp Kit - For use with Legion Solar rail system for solar panel attachment. Compatible with PV aluminum frame thickness from 30 - 50mm. Panel Separation 1/2" (12.7mm)

Included Items:
QTY2 Bonding Mid Clamps
Price: $10.00


Product Code: 897346002160_PRESMR
Qty:

Description

For use with Legion Solar rail system for solar panel attachment. Compatible with PV aluminum frame thickness from 30 - 50mm. Panel Separation 1/2" (12.7mm)
Features
Pre-Assembled Universal Grounding Mid Clamps have a unique T-Bolt locking feature that ensure the T-Bolt remains vertical and in full contact with rail to eliminate pull out. The spring-loaded top clamp and open collar nut accommodates module frames from 30 to 50mm. The added Loctite easily engages the T-Bolt from the top of the collar nut. The shared rail adaptor conveniently converts standard rail to shared rail to allow landscape mounting of PV panels on rails. Use 7/16" or 11mm wrench to tighten.
